Pleated Activated Carbon Cellulose Filter Cartridges

Pleated Activated Carbon Cellulose Filter Cartridges

Regular price From $83.00 USD
Regular price Sale price From $83.00 USD
Sale Sold out
Shipping calculated at checkout.
↓ Download Technical Datasheet (PDF) Request a quote

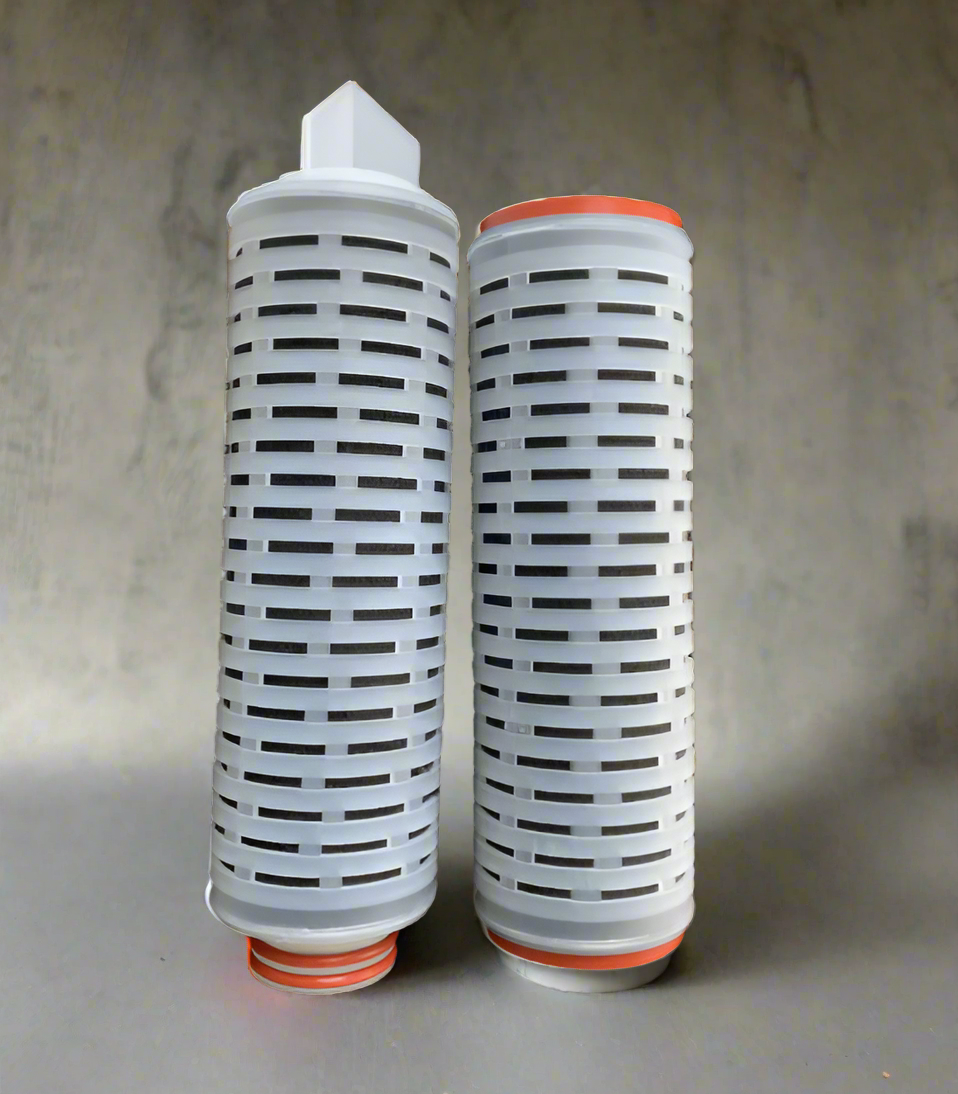

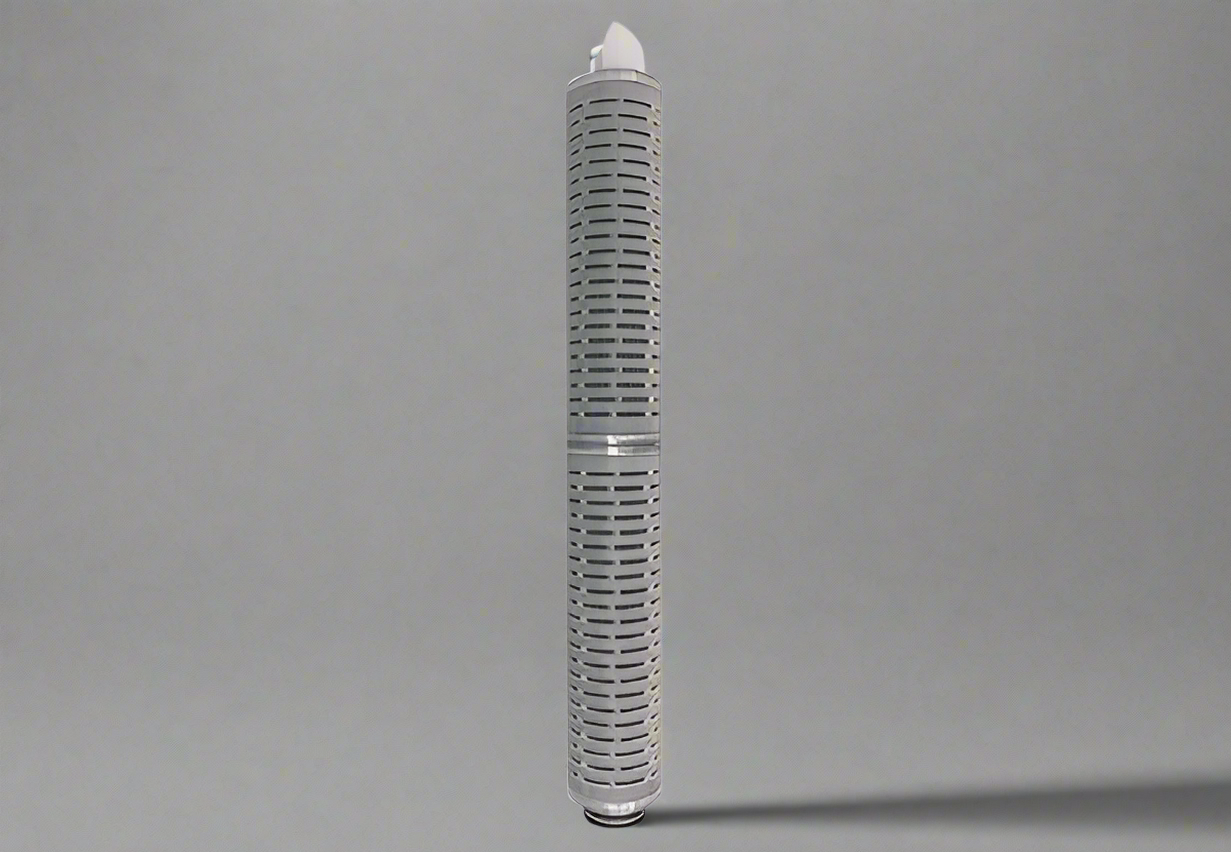

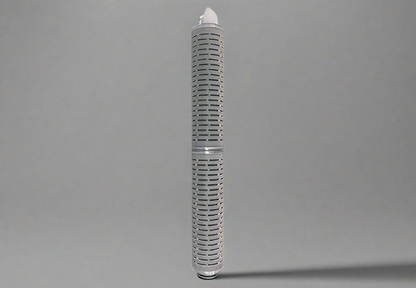

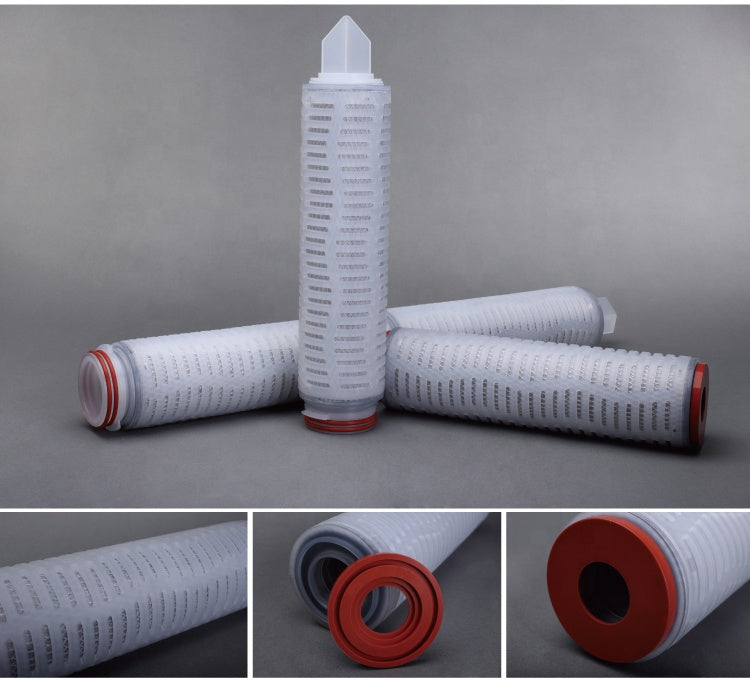

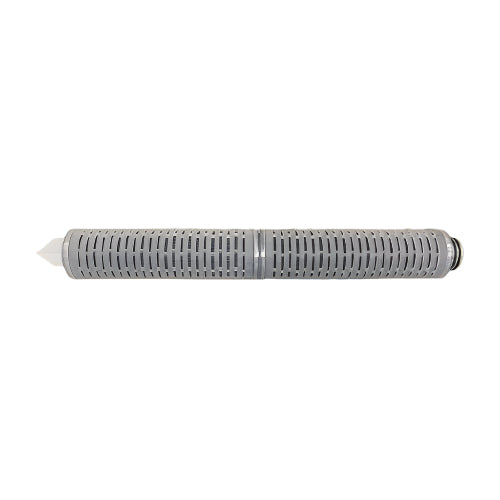

PARSWOOD CPAC Pleated Activated Carbon Filter Cartridges provide adsorptive and decolorizing filtration for a range of compatible process liquids. Carbon-impregnated cellulose media combines activated carbon adsorption with a 5 µm filtration rating, helping reduce unwanted colour and capture suspended particles.

The pleated media is supported by a polypropylene cage, core and end caps. Multiple lengths, connections and seal materials allow selection to suit your filter housing and process.

Typical applications

  • Organic solvents: decolorization of compatible solvent streams.
  • Sugar and starch processing: colour reduction in process solutions.
  • Vitamins and amino acids: adsorptive treatment and decolorization.
  • Pharmaceutical process liquids and fine chemicals: filtration where activated carbon treatment is appropriate.

Adsorption performance and cartridge life depend on the liquid, contaminant loading and operating conditions.

Technical specifications

Property Specification
Filter media Carbon-impregnated cellulose
Support, cage, core and end caps Polypropylene
Filtration rating 5 µm
Outside diameter 69 mm / approximately 2.72 inches
Maximum operating temperature 60°C / 140°F
Maximum differential pressure 4 bar at 20°C; 1 bar at 60°C
pH range 1–13, subject to cartridge and seal compatibility

Choose your configuration

Order online in 20- or 30-inch lengths, with Silicone or EPDM seals. Available connections include:

  • DOE — double open end
  • 222/Flat
  • 226/Flat
  • 222/Fin
  • 226/Fin — Code 7

5-, 10- and 40-inch lengths and FKM seals are also available by quotation. Download the technical datasheet for the complete PARSWOOD ordering guide and configuration details.

Availability and selection support

Check the ordering table for each part number’s price, available stock and delivery estimate. Out-of-stock quantities available to order have an estimated delivery of 4–8 weeks from order confirmation, as indicated beside the SKU.

For help matching the cartridge, connection and seal material to your application, contact PARSWOOD.

View full details
Your cart
Variant Variant total Quantity Price Variant total
Pleated Activated Carbon Cellulose Filter Cartridges
20 inch / DOE / SiliconeCPAC20S
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
20 inch / DOE / SiliconeCPAC20S
$90.00/ea
$90.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$90.00/ea
$90.00
Pleated Activated Carbon Cellulose Filter Cartridges
20 inch / DOE / EPDMCPAC20E
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
20 inch / DOE / EPDMCPAC20E
$90.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$90.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
20 inch / 222/Flat / SiliconeCPAC20C3S
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
20 inch / 222/Flat / SiliconeCPAC20C3S
$90.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$90.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
20 inch / 222/Flat / EPDMCPAC20C3E
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
20 inch / 222/Flat / EPDMCPAC20C3E
$83.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$83.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
20 inch / 226/Flat / SiliconeCPAC20C2S
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
20 inch / 226/Flat / SiliconeCPAC20C2S
$90.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$90.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
20 inch / 226/Flat / EPDMCPAC20C2E
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
20 inch / 226/Flat / EPDMCPAC20C2E
$90.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$90.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
20 inch / 222/Fin / SiliconeCPAC20C8S
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
20 inch / 222/Fin / SiliconeCPAC20C8S
$90.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$90.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
20 inch / 222/Fin / EPDMCPAC20C8E
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
20 inch / 222/Fin / EPDMCPAC20C8E
$90.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$90.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
20 inch / 226/Fin (Code 7) / SiliconeCPAC20C7S
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
20 inch / 226/Fin (Code 7) / SiliconeCPAC20C7S
$90.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$90.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
20 inch / 226/Fin (Code 7) / EPDMCPAC20C7E
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
20 inch / 226/Fin (Code 7) / EPDMCPAC20C7E
$90.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$90.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
30 inch / DOE / SiliconeCPAC30S
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
30 inch / DOE / SiliconeCPAC30S
$119.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$119.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
30 inch / DOE / EPDMCPAC30E
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
30 inch / DOE / EPDMCPAC30E
$119.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$119.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
30 inch / 222/Flat / SiliconeCPAC30C3S
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
30 inch / 222/Flat / SiliconeCPAC30C3S
$119.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$119.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
30 inch / 222/Flat / EPDMCPAC30C3E
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
30 inch / 222/Flat / EPDMCPAC30C3E
$119.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$119.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
30 inch / 226/Flat / SiliconeCPAC30C2S
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
30 inch / 226/Flat / SiliconeCPAC30C2S
$119.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$119.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
30 inch / 226/Flat / EPDMCPAC30C2E
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
30 inch / 226/Flat / EPDMCPAC30C2E
$119.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$119.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
30 inch / 222/Fin / SiliconeCPAC30C8S
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
30 inch / 222/Fin / SiliconeCPAC30C8S
$119.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$119.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
30 inch / 222/Fin / EPDMCPAC30C8E
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
30 inch / 222/Fin / EPDMCPAC30C8E
$119.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$119.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
30 inch / 226/Fin (Code 7) / SiliconeCPAC30C7S
19 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 19? Minimum backorder: 12 additional units (31 total or more). No required multiples.
30 inch / 226/Fin (Code 7) / SiliconeCPAC30C7S
$97.00/ea
$0.00
19 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 19? Minimum backorder: 12 additional units (31 total or more). No required multiples.
$97.00/ea
$0.00
Pleated Activated Carbon Cellulose Filter Cartridges
30 inch / 226/Fin (Code 7) / EPDMCPAC30C7E
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
30 inch / 226/Fin (Code 7) / EPDMCPAC30C7E
$119.00/ea
$0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 12 units per part number. Any quantity above this minimum is accepted.
$119.00/ea
$0.00

View cart
1

Total items

$90.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart

 Request a quote or get selection help

Product: Pleated Activated Carbon Cellulose Filter Cartridges
