NYD2222B30EP

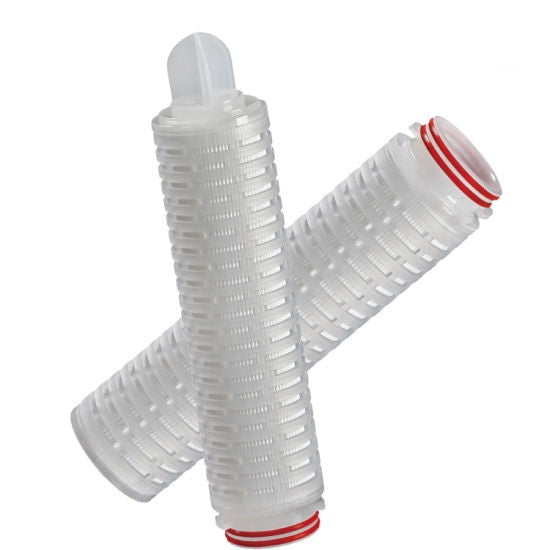

Nylon 66 (Hydrophilic), Dual Layer Pleated Filter Cartridge for Bottled Water, Wine and Ultra Pure Water (UPW) Final Filtration (Polishing)

PARSWOOD

Regular price $486.00

Shipping calculated at checkout.

Absolute rated N66 membrane that is inherently hydrophilic and has excellent chemical resistance, it is manufactured without the use of glues, adhesives or wetting agents, ensuring high purity in various applications.

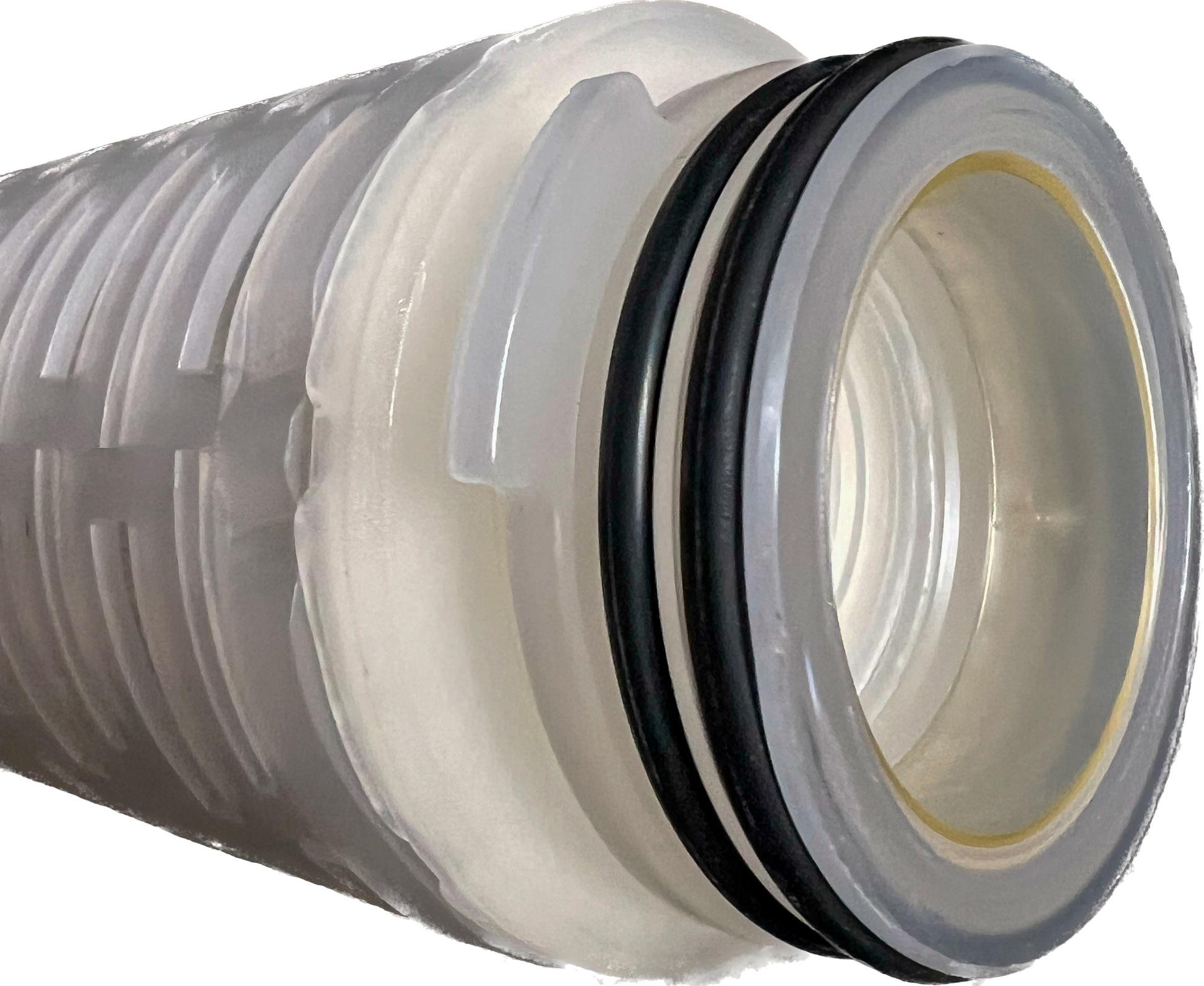

Offering Dual Layer with selecting options for upstream layer (0.1μm, 0.22μm, 0.45μm) and downstream layer (0.1μm, 0.22μm, 0.45μm) in various End Cap modifications, Length and O-Ring (Seal) materials to be tailored for your application.

Features

  • Hydrophilic Nylon 66 membrane, no wetting agents
  • Double layer media, absolute rated filtration
  • High flow and long service life
  • Superior chemical resistance
  • Enhanced resistance to in-line and autoclave steam sterilization
  • 100% integrity tested

Applications

  • Bottled Water, Wine, Ultra Pure Water (UPW) final filtration (Polishing)
  • Organic solvents and aqueous co-solvent systems
  • High purity water filtration

Dimension
Diameter: 69mm (2.7")

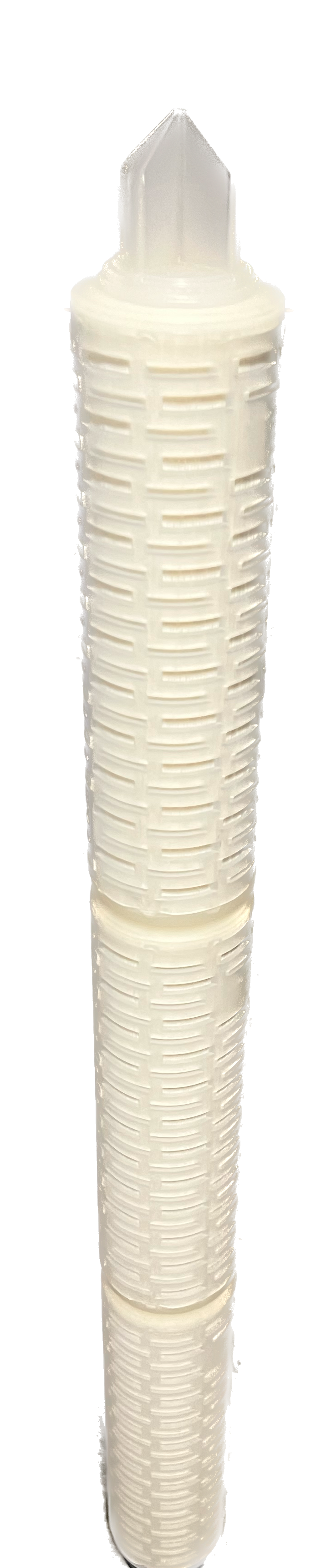

Length: 5”, 10”, 20”, 30”, 40”

Material of Constructions

Media: N66
Support: PET
Cage/Core/End: PP
Connection Adaptor: SS Insert, PSU Insert
O-Ring: Silicone, EPDM

Operating Conditions
Max. Operating Temperature: 80℃
Max. Operating DP: 4 Bar@20℃, 2.4 Bar@80℃
Sterilization
Steam Sterilization: 125℃, 30 minutes, 30 cycles
