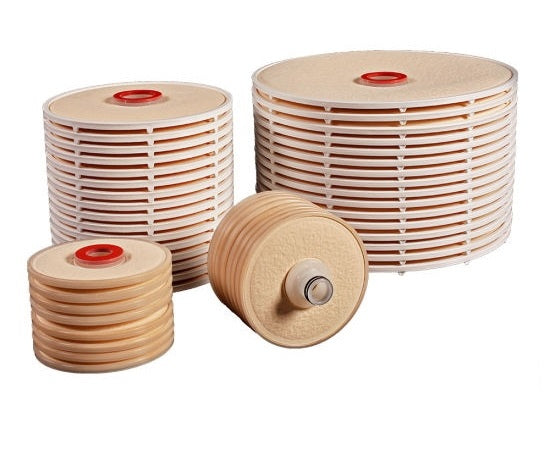

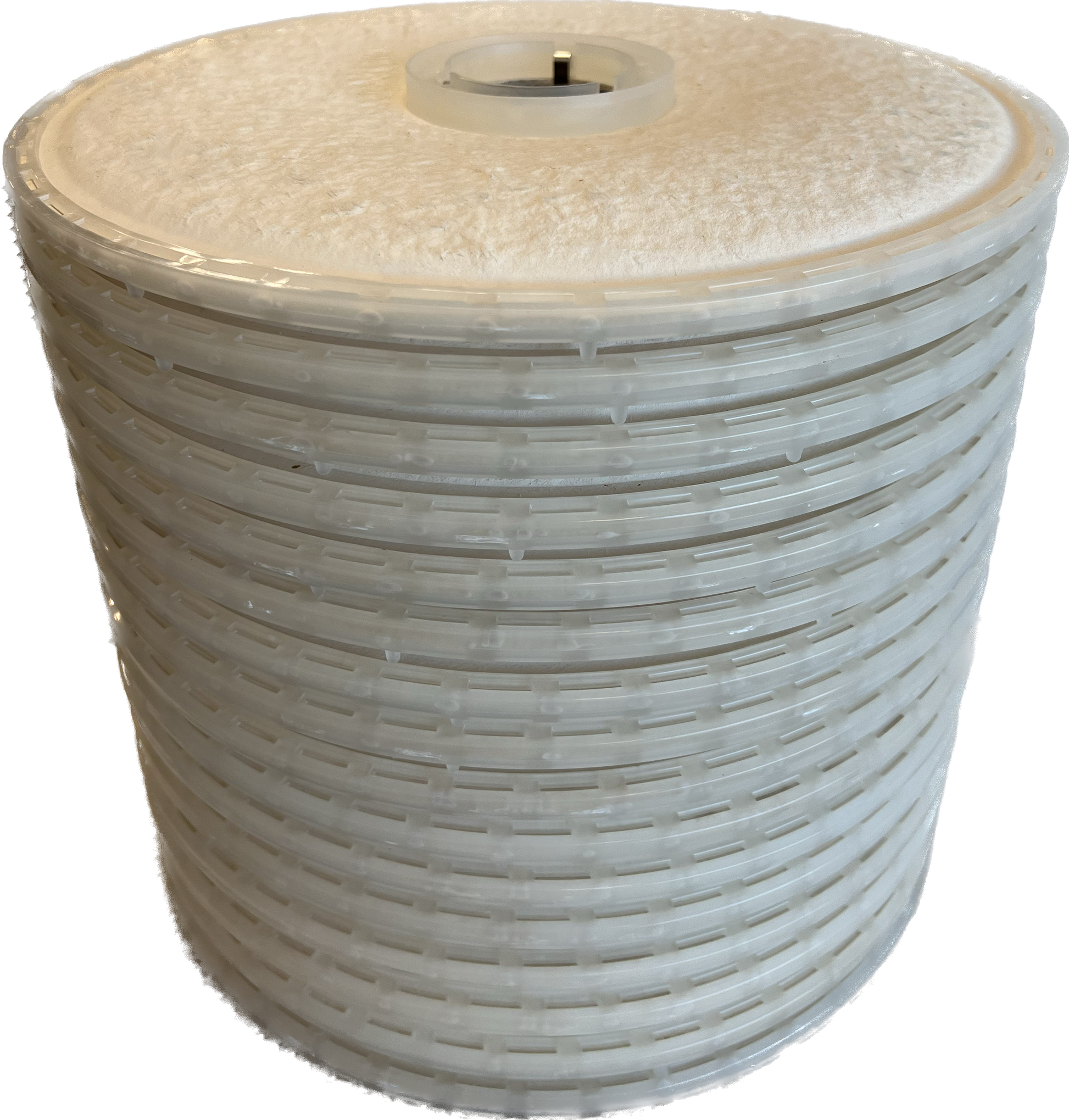

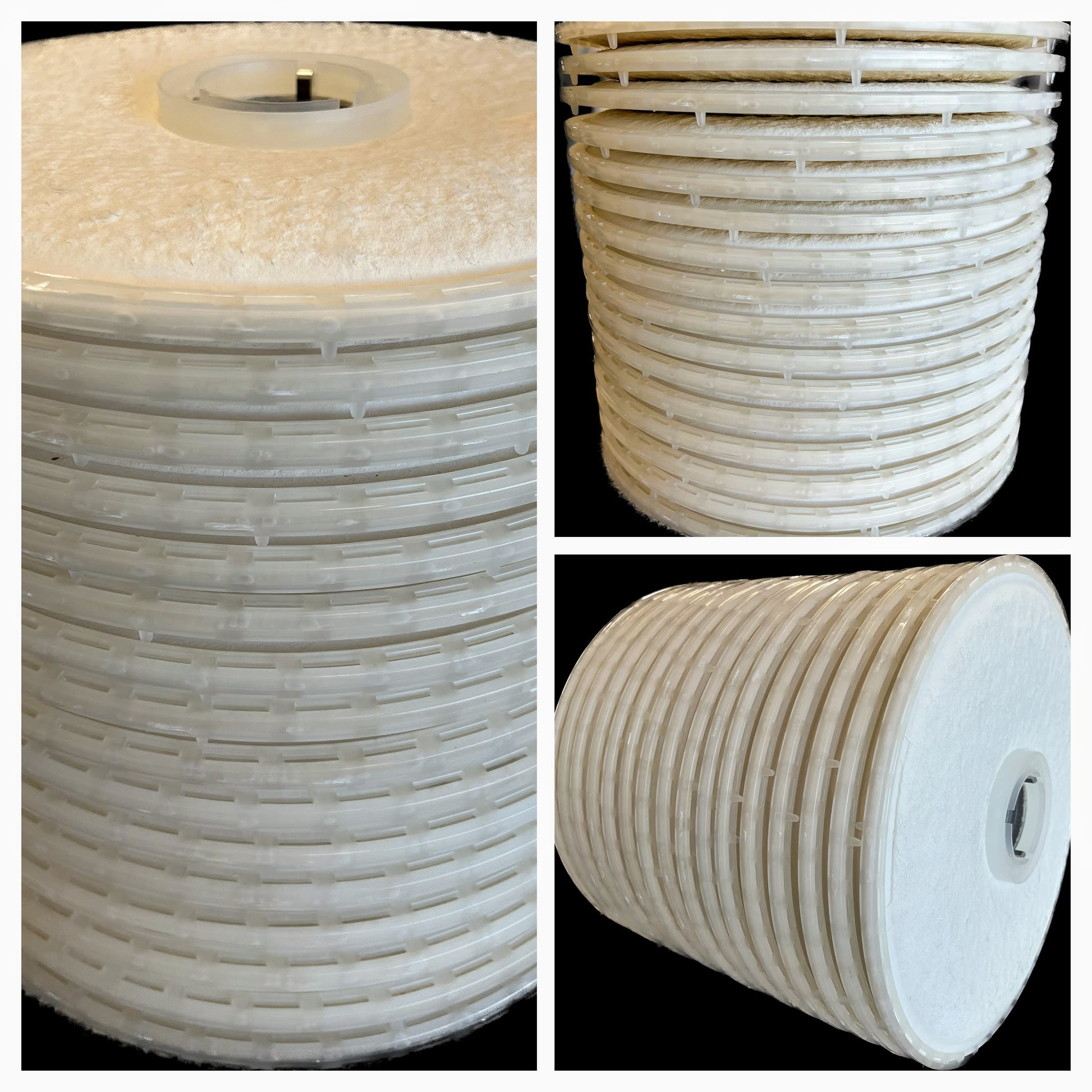

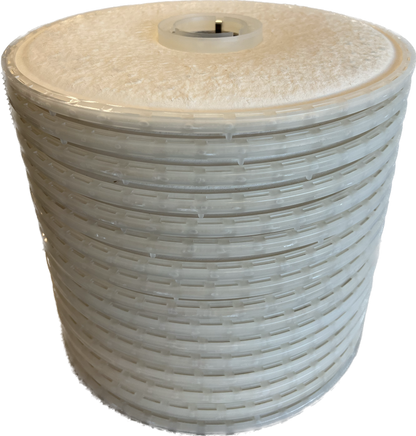

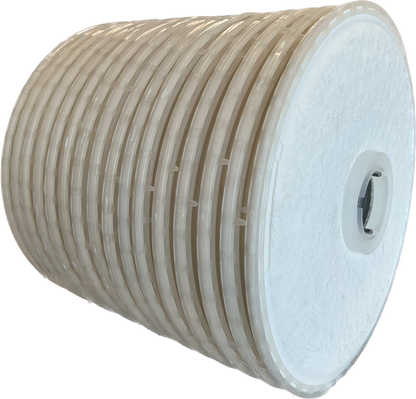

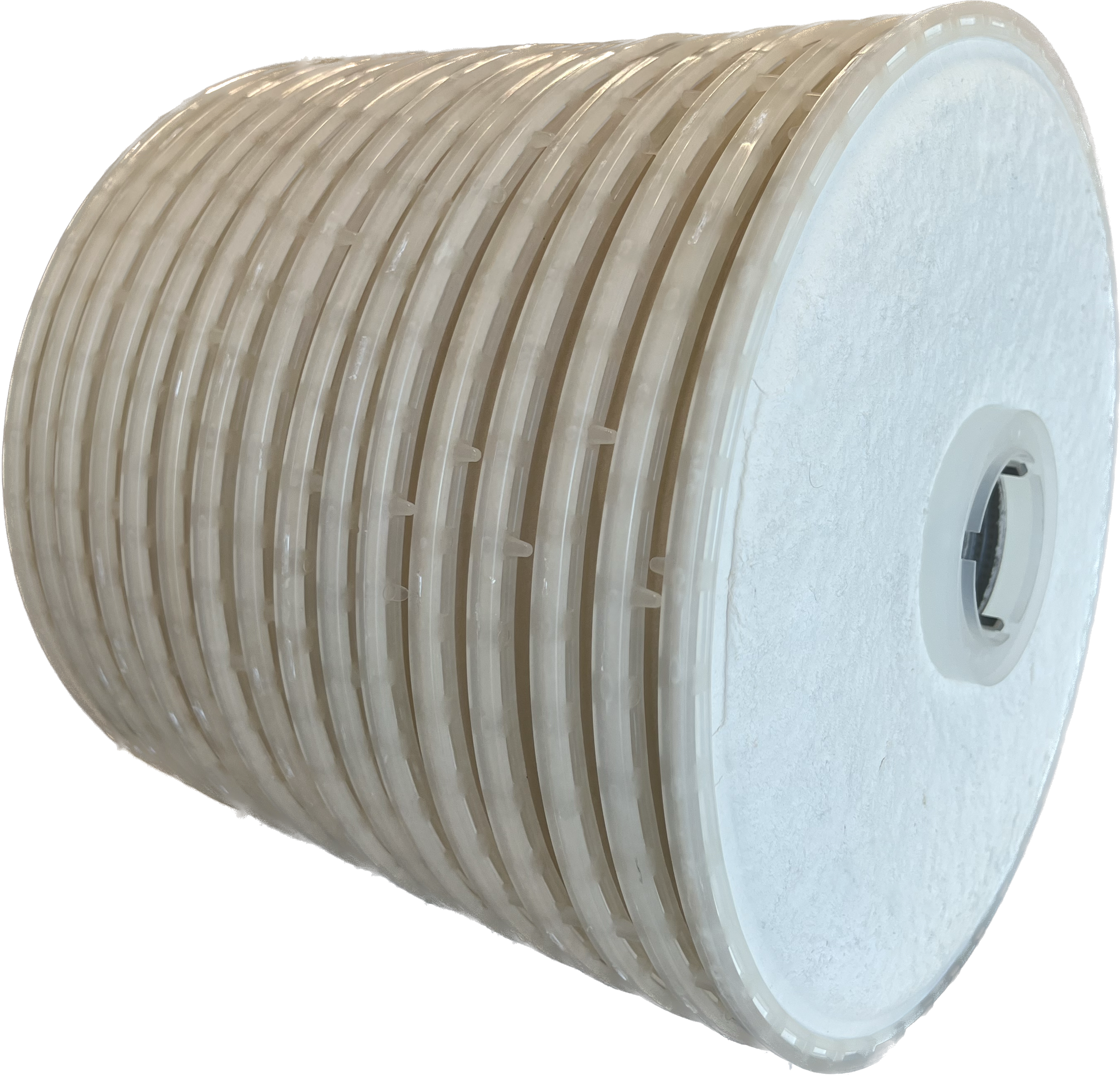

Lenticular Depth Filter Cartridges

Lenticular Depth Filter Cartridges

From $233.02 CAD
From $233.02 CAD
Sale Sold out
Shipping calculated at checkout.
↓ Download Technical Datasheet (PDF) Request a quote

PARSWOOD lenticular depth filter cartridges clarify compatible process liquids using cellulose-based sheets with mineral filter aids and resins. The media combines surface interception, depth filtration and adsorptive capture to reduce particulate and colloidal loading.

Select your module

Choose the nominal filtration grade and module configuration below. The online range uses Family A media, 16 cells and NBR (Buna) seals.

  • 12-inch DOE with gaskets: CAD $233.02 per module.
  • 12-inch DOE with gaskets and handle: CAD $242.93 per module.
  • 16-inch DOE with gaskets: CAD $501.32 per module.

Each of these three configurations is offered in all 11 Family A grades. An additional 12-inch DOE double-O-ring configuration is listed in the 0.6–1.0 µm grade as part number L006S12B16, at CAD $305.25 per module. Match this connection to your existing housing; it is distinct from the flat-gasket DOE modules.

Applications

  • Wine, beer, cider and juice clarification.
  • Filtration of compatible syrups, vinegar, edible oils, cosmetics and process liquids.
  • Prefiltration to reduce loading on downstream fine or membrane filters.

Nominal media grades

Family A selection ranges: 0.1–0.3, 0.2–0.4, 0.4–0.6, 0.6–1.0, 1–3, 2–5, 3–7, 10–15, 25–30, 40–50 and 50–60 µm.

These ranges are nominal depth-filtration selection references, not absolute membrane ratings or sterilizing-grade claims. Select the grade for your liquid, solids loading, required clarity and flow rate.

Materials and operating limits

  • Media: Cellulose, diatomaceous earth, perlite and resins, depending on grade.
  • Support components: Polypropylene.
  • Seals in the online range: NBR (Buna).
  • Maximum operating temperature: 80°C.
  • Maximum differential pressure: 2.0 bar at 25°C or 1.0 bar at 80°C.

Filtration area and installed dimensions depend on the module configuration. Confirm housing fit and compatibility with the process liquid and cleaning procedure. The standard modules on this page are separate from our backwashable lenticular range.

Stock, backorders and delivery

Available stock is shown beside each SKU. Out-of-stock modules and quantities exceeding available stock can be ordered online, with estimated delivery of 4–8 weeks from order confirmation. We will notify you if the delivery estimate changes.

Datasheet and repeat orders

Download the technical datasheet for media selection and family configuration guidance. Existing PARSWOOD part numbers remain valid for repeat orders. The datasheet covers a broader range than the online options; use the selection-help form below for other cell counts, seals, media families or formats.

View full details
Variant Variant total Quantity Price Variant total
0.1–0.3 µm / 12 inch / DOE gasketsL001D12B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
0.1–0.3 µm / 12 inch / DOE gasketsL001D12B16
$233.02/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$233.02/ea		 $0.00
0.1–0.3 µm / 12 inch / DOE gaskets / HandleL001D12B16H
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
0.1–0.3 µm / 12 inch / DOE gaskets / HandleL001D12B16H
$242.93/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$242.93/ea		 $0.00
0.1–0.3 µm / 16 inch / DOE gasketsL001D16B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
0.1–0.3 µm / 16 inch / DOE gasketsL001D16B16
$501.32/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$501.32/ea		 $0.00
0.2–0.4 µm / 12 inch / DOE gasketsL002D12B16
13 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 13? Minimum backorder: 4 additional units (17 total or more). No required multiples.
0.2–0.4 µm / 12 inch / DOE gasketsL002D12B16
$233.02/ea		 $0.00
13 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 13? Minimum backorder: 4 additional units (17 total or more). No required multiples.
$233.02/ea		 $0.00
0.2–0.4 µm / 12 inch / DOE gaskets / HandleL002D12B16H
1 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 1? Minimum backorder: 4 additional units (5 total or more). No required multiples.
0.2–0.4 µm / 12 inch / DOE gaskets / HandleL002D12B16H
$242.93/ea		 $0.00
1 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 1? Minimum backorder: 4 additional units (5 total or more). No required multiples.
$242.93/ea		 $0.00
0.2–0.4 µm / 16 inch / DOE gasketsL002D16B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
0.2–0.4 µm / 16 inch / DOE gasketsL002D16B16
$501.32/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$501.32/ea		 $0.00
0.4–0.6 µm / 12 inch / DOE gasketsL004D12B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
0.4–0.6 µm / 12 inch / DOE gasketsL004D12B16
$233.02/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$233.02/ea		 $0.00
0.4–0.6 µm / 12 inch / DOE gaskets / HandleL004D12B16H
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
0.4–0.6 µm / 12 inch / DOE gaskets / HandleL004D12B16H
$242.93/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$242.93/ea		 $0.00
0.4–0.6 µm / 16 inch / DOE gasketsL004D16B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
0.4–0.6 µm / 16 inch / DOE gasketsL004D16B16
$501.32/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$501.32/ea		 $0.00
0.6–1.0 µm / 12 inch / DOE gaskets / HandleL006D12B16H
1 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 1? Minimum backorder: 4 additional units (5 total or more). No required multiples.
0.6–1.0 µm / 12 inch / DOE gaskets / HandleL006D12B16H
$242.93/ea		 $0.00
1 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 1? Minimum backorder: 4 additional units (5 total or more). No required multiples.
$242.93/ea		 $0.00
0.6–1.0 µm / 16 inch / DOE gasketsL006D16B16
5 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 5? Minimum backorder: 4 additional units (9 total or more). No required multiples.
0.6–1.0 µm / 16 inch / DOE gasketsL006D16B16
$501.32/ea		 $0.00
5 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 5? Minimum backorder: 4 additional units (9 total or more). No required multiples.
$501.32/ea		 $0.00
1–3 µm / 12 inch / DOE gasketsL100D12B16
15 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 15? Minimum backorder: 4 additional units (19 total or more). No required multiples.
1–3 µm / 12 inch / DOE gasketsL100D12B16
$233.02/ea		 $0.00
15 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 15? Minimum backorder: 4 additional units (19 total or more). No required multiples.
$233.02/ea		 $0.00
1–3 µm / 12 inch / DOE gaskets / HandleL100D12B16H
1 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 1? Minimum backorder: 4 additional units (5 total or more). No required multiples.
1–3 µm / 12 inch / DOE gaskets / HandleL100D12B16H
$242.93/ea		 $0.00
1 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 1? Minimum backorder: 4 additional units (5 total or more). No required multiples.
$242.93/ea		 $0.00
1–3 µm / 16 inch / DOE gasketsL100D16B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
1–3 µm / 16 inch / DOE gasketsL100D16B16
$501.32/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$501.32/ea		 $0.00
2–5 µm / 12 inch / DOE gasketsL150D12B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
2–5 µm / 12 inch / DOE gasketsL150D12B16
$233.02/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$233.02/ea		 $0.00
2–5 µm / 12 inch / DOE gaskets / HandleL150D12B16H
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
2–5 µm / 12 inch / DOE gaskets / HandleL150D12B16H
$242.93/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$242.93/ea		 $0.00
2–5 µm / 16 inch / DOE gasketsL150D16B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
2–5 µm / 16 inch / DOE gasketsL150D16B16
$501.32/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$501.32/ea		 $0.00
3–7 µm / 12 inch / DOE gasketsL200D12B16
12 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 12? Minimum backorder: 4 additional units (16 total or more). No required multiples.
3–7 µm / 12 inch / DOE gasketsL200D12B16
$233.02/ea		 $0.00
12 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 12? Minimum backorder: 4 additional units (16 total or more). No required multiples.
$233.02/ea		 $0.00
3–7 µm / 12 inch / DOE gaskets / HandleL200D12B16H
1 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 1? Minimum backorder: 4 additional units (5 total or more). No required multiples.
3–7 µm / 12 inch / DOE gaskets / HandleL200D12B16H
$242.93/ea		 $0.00
1 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 1? Minimum backorder: 4 additional units (5 total or more). No required multiples.
$242.93/ea		 $0.00
3–7 µm / 16 inch / DOE gasketsL200D16B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
3–7 µm / 16 inch / DOE gasketsL200D16B16
$501.32/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$501.32/ea		 $0.00
10–15 µm / 12 inch / DOE gasketsL210D12B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
10–15 µm / 12 inch / DOE gasketsL210D12B16
$233.02/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$233.02/ea		 $0.00
10–15 µm / 12 inch / DOE gaskets / HandleL210D12B16H
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
10–15 µm / 12 inch / DOE gaskets / HandleL210D12B16H
$242.93/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$242.93/ea		 $0.00
10–15 µm / 16 inch / DOE gasketsL210D16B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
10–15 µm / 16 inch / DOE gasketsL210D16B16
$501.32/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$501.32/ea		 $0.00
25–30 µm / 12 inch / DOE gasketsL230D12B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
25–30 µm / 12 inch / DOE gasketsL230D12B16
$233.02/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$233.02/ea		 $0.00
25–30 µm / 12 inch / DOE gaskets / HandleL230D12B16H
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
25–30 µm / 12 inch / DOE gaskets / HandleL230D12B16H
$242.93/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$242.93/ea		 $0.00
25–30 µm / 16 inch / DOE gasketsL230D16B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
25–30 µm / 16 inch / DOE gasketsL230D16B16
$501.32/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$501.32/ea		 $0.00
40–50 µm / 12 inch / DOE gasketsL240D12B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
40–50 µm / 12 inch / DOE gasketsL240D12B16
$233.02/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$233.02/ea		 $0.00
40–50 µm / 12 inch / DOE gaskets / HandleL240D12B16H
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
40–50 µm / 12 inch / DOE gaskets / HandleL240D12B16H
$242.93/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$242.93/ea		 $0.00
40–50 µm / 16 inch / DOE gasketsL240D16B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
40–50 µm / 16 inch / DOE gasketsL240D16B16
$501.32/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$501.32/ea		 $0.00
50–60 µm / 12 inch / DOE gasketsL250D12B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
50–60 µm / 12 inch / DOE gasketsL250D12B16
$233.02/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$233.02/ea		 $0.00
50–60 µm / 12 inch / DOE gaskets / HandleL250D12B16H
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
50–60 µm / 12 inch / DOE gaskets / HandleL250D12B16H
$242.93/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$242.93/ea		 $0.00
50–60 µm / 16 inch / DOE gasketsL250D16B16
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
50–60 µm / 16 inch / DOE gasketsL250D16B16
$501.32/ea		 $0.00
Available to order
Estimated delivery: 4–8 weeks from order confirmation.
Minimum order: 4 units per part number. Any quantity above this minimum is accepted.
$501.32/ea		 $0.00
Lenticular Depth Filter Cartridges
0.6–1.0 µm / 12 inch / DOE double O-ringsL006D12B16
12 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 12? Minimum backorder: 4 additional units (16 total or more). No required multiples.
0.6–1.0 µm / 12 inch / DOE double O-ringsL006D12B16
$305.25/ea		 $0.00
12 available in stock
Quantities exceeding available stock: estimated delivery 4–8 weeks from order confirmation.
Need more than 12? Minimum backorder: 4 additional units (16 total or more). No required multiples.
$305.25/ea		 $0.00
View cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart

 Request a quote or get selection help

Product: Lenticular Depth Filter Cartridges
