Polypropylene Absolute Pleated Cartridges for Pre-RO, Pre Filtration, Food and Beverage, Beer, Wine, Cider, Oil Extraction Applications

Polypropylene Absolute Pleated Cartridges for Pre-RO, Pre Filtration, Food and Beverage, Beer, Wine, Cider, Oil Extraction Applications

Regular price $110.68 CAD
Regular price Sale price $110.68 CAD
Sale Sold out
Shipping calculated at checkout.

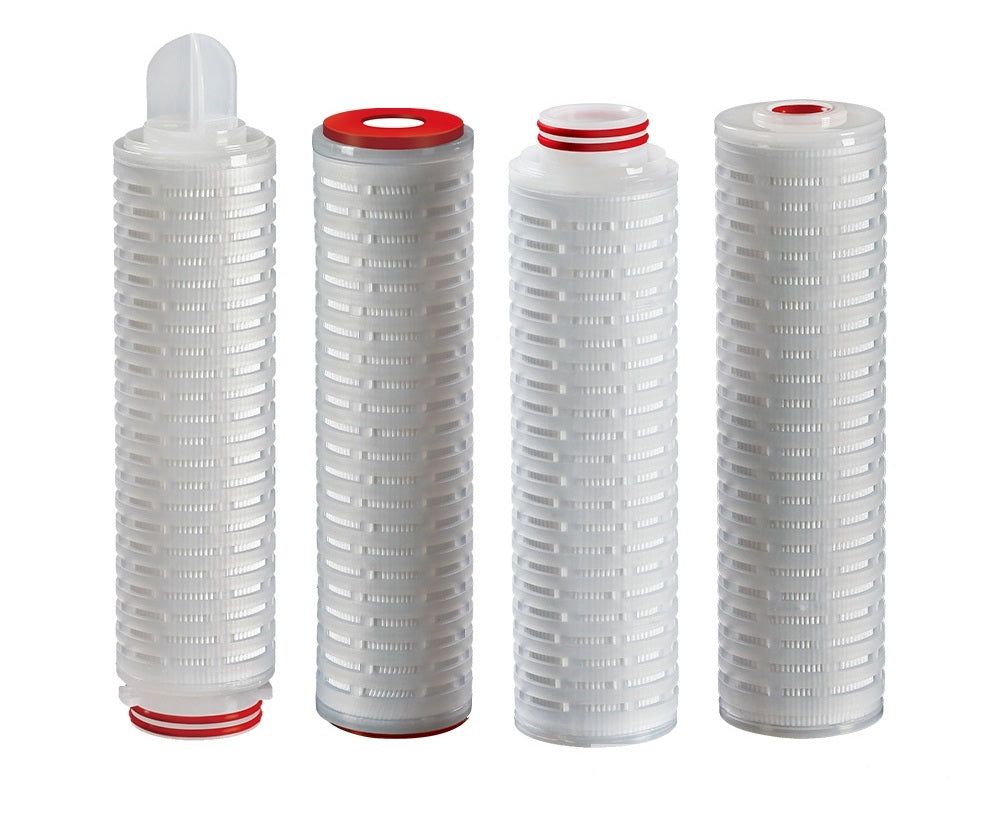

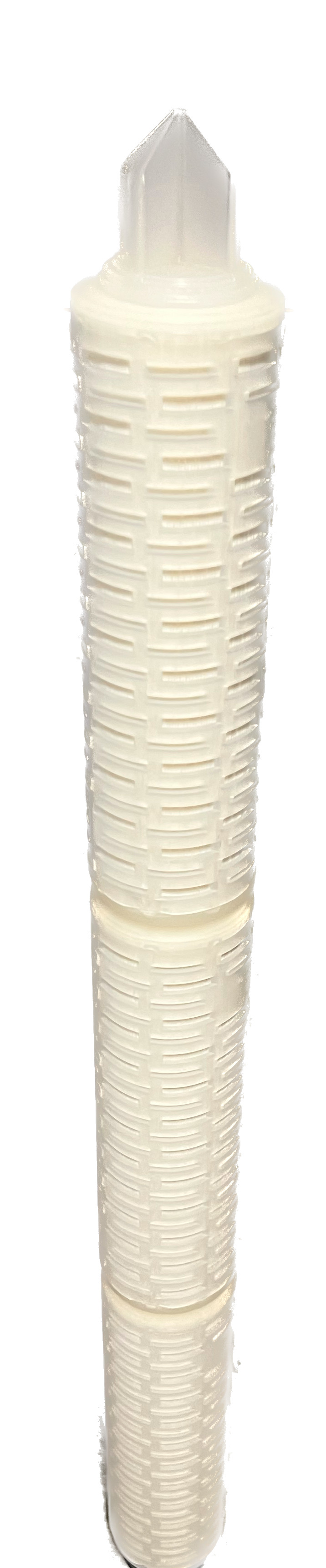

Absolute rated, pleated depth-type filters, constructed of 100% polypropylene material. These filters are available in absolute particle retention ratings from 0.1 to 50 micron and various end cap configurations to fit into the most standard housings. All components of the filter cartridges are FDA approved. The filter media and its support structure are thermally welded to the end caps, making integral filter cartridges of minimum extractables in a wide range of fluids and applications. All the filter cartridges are manufactured in a clean room environment.

FEATURES

  • Absolute rated structure, particle removal rating from 0.1 to 50 micron
  • 100% polypropylene components provide broad chemical compatibility, suitable for use in a variety of fluids
  • Consistent particle removal, no migration of filter media and non fiber shedding

APPLICATIONS

  • Food & Beverage
  • Plating Chemicals
  • RO Pre-Filtration
  • Oil Extraction
  • Fine Chemical
  • Process Water

Dimension

Outer Diameter: 2.7" (69mm)
Length: 5”, 10”, 20”, 30”, 40”

Material of Constructions:

Media: PP
Support: PP
Cage/Core/End cap: PP
Sealing: Silicone, EPDM, NBR,
FKM, E-FKM

Performance:

Max. Operating temperature: 80℃
Max. Operating DP: 4bar@20℃, 2.4bar@80℃

Product features

Materials and care

Merchandising tips

View full details
Your cart
Variant Variant total Quantity Price Variant total
1um; 30 inch; 226 fin/SS; silicone O-ring; PP corePPA0100B30SP
1um; 30 inch; 226 fin/SS; silicone O-ring; PP corePPA0100B30SP
$110.68/ea
$0.00
$110.68/ea $0.00
1um; 30 inch; 226 fin/SS; Buna O-ring; PP corePPA0100B30BP
1um; 30 inch; 226 fin/SS; Buna O-ring; PP corePPA0100B30BP
$110.68/ea
$0.00
$110.68/ea $0.00
0.22um; 30 inch; 226 fin/SS; silicone O-ring; PP corePPA0022B30SP
0.22um; 30 inch; 226 fin/SS; silicone O-ring; PP corePPA0022B30SP
$126.66/ea
$0.00
$126.66/ea $0.00
10um; 30 inch; 226 fin/SS; silicone O-ring; PP corePPA1000B30SP
10um; 30 inch; 226 fin/SS; silicone O-ring; PP corePPA1000B30SP
$110.68/ea
$0.00
$110.68/ea $0.00
20um; 30 inch; 226 fin/SS; silicone O-ring; PP corePPA2000B30SP
20um; 30 inch; 226 fin/SS; silicone O-ring; PP corePPA2000B30SP
$104.39/ea
$0.00
$104.39/ea $0.00
0.45um; 30 inch; 226 fin/SS; silicone O-ring; PP corePPA0045B30SP
0.45um; 30 inch; 226 fin/SS; silicone O-ring; PP corePPA0045B30SP
$116.97/ea
$0.00
$116.97/ea $0.00
